Lines and intensities in the range 3006-3022 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3007.8321    33236.85       530     Ne II                  C
  3007.9335    33235.73       400     Ne II                  C
  3008.18      33233.0         95
  3009.31      33220.5        110
  3011.5305    33196.035     1000
  3012.1354    33189.368     3300     Ne I                   G
  3012.38      33186.7        570     Pt I     18566- 51753  N
  3012.53      33185.0        240     Pt II    41434- 74619  K
  3012.9576    33180.311     3500     Ne I                   G
  3013.9706    33169.16       110     Ne II                  C
  3014.50      33163.3         90     Pt II   115060- 81897  K
  3014.9700    33158.165     1100     Pt II   117340- 84182  K
  3015.37      33153.8        320     Pt I     26638- 59792  N
  3015.69      33150.2         95
  3016.30      33143.5         51
  3016.3882    33142.577       63     Pt II    23875- 57018  15
  3016.74      33138.7        130
  3016.80      33138.1        130     Pt II   105086- 71948  K
  3017.2399    33133.222     6200     Pt II    34647- 67780  K
  3017.3093    33132.459     8000     Ne II                  G
  3017.3498    33132.014     1300     Ne I
  3017.8714    33126.289     8800     Pt I     13496- 46622  E
  3018.9858    33114.062      230     Pt II    32237- 65351  11
  3020.6390    33095.939              Fe I                   R
  3021.05      33091.4         77
Character descriptor definitions (appear to right of intensity)
Code definitions

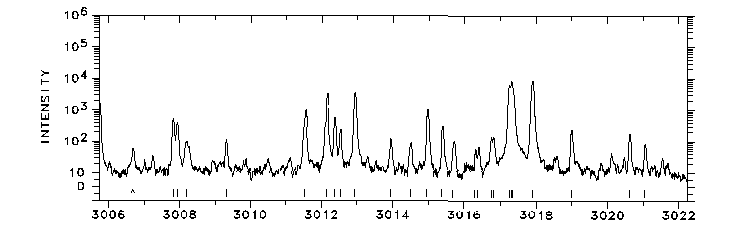

Photoelectric spectrum

3006-3022 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
