Lines and intensities in the range 2990-3006 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2991.25      33421.1        260
  2991.4665    33418.674    24000     Pt II   101199- 67780  K
  2992.17      33410.8        270     Pt II   110020- 76610  K
  2992.4296    33407.918     7100     Ne I                   G
  2994.0230    33390.14       660     Ne II                  C
  2994.44      33385.5         50
  2994.7722    33381.787      850     Pt I     68703- 35321  N
  2994.79      33381.6       1200
  2994.8285    33381.159      500     Ne II                  G
  2994.9101    33380.25       380     Ne II                  C
  2997.6170    33350.108     3100     Pt II    32237- 65587  20
  2997.9622    33346.268   840000 C   Pt I       775- 34122  E
  2998.40      33341.4        940     Pt II   112433- 79092  K
  2999.05      33334.2        540     Pt II    42031- 75365  K
  3001.1410    33310.950      900 U   Pt II   117493- 84182  K
  3001.1675    33310.655     6800 D   Pt II    18097- 51408  08
  3001.6685    33305.096   110000     Ne II                  G
  3002.2641    33298.489    63000     Pt I       823- 34122  E
  3003.2488    33287.572      730     Pt I     66967- 33680  N
  3004.09      33278.3        130     Pt I     26638- 59916  N
  3004.17      33277.4        290     Pt I     15501- 48779  N
  3005.7717    33259.632     1600
Character descriptor definitions (appear to right of intensity)
Code definitions

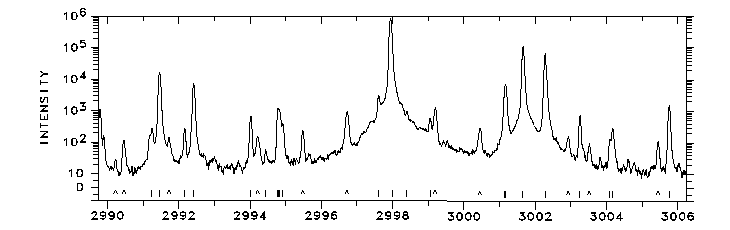

Photoelectric spectrum

2990-3006 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
