Lines and intensities in the range 2974-2990 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2974.7189    33606.812    11000     Ne I                   G
  2975.5233    33597.726     1800     Ne I                   G
  2976.5553    33586.079     1100     Ne II                  G
  2978.05      33569.2        330     Pt I     21967- 55536  N
  2978.9996    33558.522       54     Pt II    29261- 62820  11
  2979.1679    33556.627      350     Pt II    23461- 57018  08
  2979.4223    33553.761     1430 P
  2979.4585    33553.353     2100 P   Ne II                  G
  2979.8086    33549.411     3600     Ne I                   G
  2979.9237    33548.116     1600     Pt II   110158- 76610  K
  2980.0375    33546.834     2100     Ne II                  G
  2980.6453    33539.994     2200     Ne I                   G
  2980.9252    33536.845     2400     Ne I                   G
  2981.4453    33530.995              Fe I                   R
  2982.10      33523.6         39
  2982.45      33519.7        180
  2982.50      33519.1        230
  2982.6696    33517.233     8800     Ne I                   G
  2982.8011    33515.754      280     Pt II    32918- 66434  16
  2983.5700    33507.118              Fe I                   R
  2983.7465    33505.136      890     Pt I     18566- 52071  E
  2985.39      33486.7        110     Pt II    37877- 71364  K
  2985.75      33482.7        110
  2986.0615    33479.162     1100     Ne II                  G
  2986.9423    33469.289       42     Pt II    36484- 69953  12
  2987.33      33464.9         43
  2988.67      33449.9         64
  2988.8832    33447.556     1800     Ne II                  G
  2989.09      33445.2         54
  2989.7940    33437.367     1100     Pt I     68759- 35321  N
  2989.90      33436.2        150     Pt II   113119- 79683  K
Character descriptor definitions (appear to right of intensity)
Code definitions

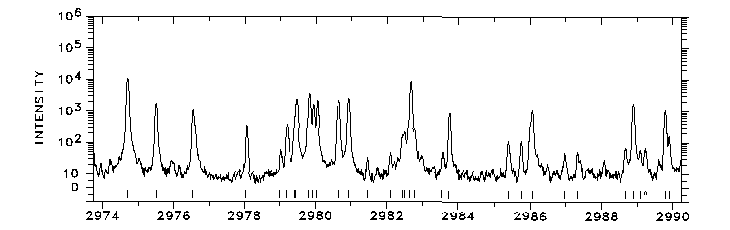

Photoelectric spectrum

2974-2990 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
