Spectrum of Platinum homepage

Lines and intensities in the range 3070-3086 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3070.23      32561.4        660     Pt I     16983- 49544  N
  3070.8916    32554.372     8300     Ne II                  G
  3071.0871    32552.300     8500     Ne II                  G
  3071.5310    32547.596     4200     Ne II                  G
  3071.9336    32543.331    33000     Pt I     10116- 42660  E
  3072.3009    32539.44       220     Ne II                  C
  3072.6543    32535.698     3400     Ne II                  G
  3073.65      32525.2        140     Pt II   115060- 82535  K
  3073.8238    32523.32       380     Ne II                  C
  3074.1059    32520.336      380     Pt II    32237- 64757  12
  3074.80      32513.0        600     Pt I     65132- 32620  N
  3075.0719    32510.12       150     Ne II                  C
  3075.43      32506.3        180     Pt II   116689- 84182  K
  3075.7378    32503.081     4100     Ne II                  G
  3075.9129    32501.231      160     Pt II    37877- 70379  28
  3076.3569    32496.540     3500     Ne II                  G
  3076.52      32494.8        320     Pt II   110258- 77763  K
  3076.69      32493.0        200     Pt II    48591- 81083  K
  3076.9761    32490.002     3300     Ne I                   G
  3077.8393    32480.89      1700     Ne II                  C
  3078.5872    32472.999     1400     Ne II                  G
  3078.8791    32469.921     1300     Ne I
  3079.1801    32466.747     1200     Ne I
  3079.5650    32462.689     2400     Pt I     68759- 36296  N
  3080.15      32456.5        110
  3081.3421    32443.967     4100     Ne II                  G
  3081.85      32438.6         29
  3082.1527    32435.435              Al I                   F
  3082.4310    32432.508       97     Pt II    32918- 65351  12
  3082.6171    32430.549     1000     Ne II                  G
  3082.7159    32429.51       680     Ne II                  C
  3083.48      32421.5         56
  3084.1111    32414.839     4400     Ne II                  C
  3084.44      32411.4         76     Pt I     62567- 30156  N
  3084.67      32409.0         40
  3084.81      32407.5        510     Pt I     68703- 36296  N
  3084.9201    32406.34       660     Ne II                  C
  3085.56      32399.6         39     Pt II    64003- 96403  K
Character descriptor definitions (appear to right of intensity)
Code definitions

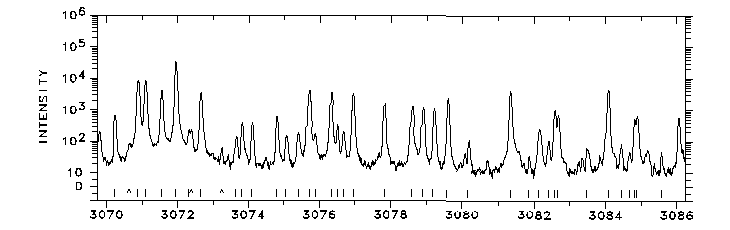

Photoelectric spectrum

3070-3086 Å

                      WAVELENGTH (ANGSTROMS) - AIR
