Spectrum of Platinum homepage

Lines and intensities in the range 3086-3102 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3086.0810    32394.15       580     Ne II                  C
  3086.34      32391.4        210
  3088.1641    32372.300    36000     Ne II                  G
  3088.2852    32371.03      1000     Ne II                  C
  3089.92      32353.9         27
  3091.14      32341.1        110
  3091.35      32338.9         72
  3092.0940    32331.158     2100     Ne II                  G
  3092.7101    32324.717              Al I                   F
  3092.8520    32323.233          U   Al I
  3092.9020    32322.711    19000     Ne II                  G
  3094.0059    32311.179    69000     Ne II                  G
  3094.83      32302.6        290
  3095.1034    32299.723     6900     Ne II                  G
  3095.1843    32298.879     1500 P   Ne II                  G
  3096.8104    32281.920    44000     Pt II   101517- 69235  K
  3097.1318    32278.569    25000     Ne II                  G
  3097.5425    32274.29       600     Ne II                  C
  3098.8282    32260.90       410     Ne II                  C
  3099.15      32257.6         79     Pt II   110020- 77763  K
  3100.0252    32248.444    34000     Pt I      6567- 38815  E
  3100.9598    32238.725     2300     Pt I     15501- 47740  E
  3101.13      32237.0        120     Pt II   115060- 82824  K
  3101.41      32234.0         81
Character descriptor definitions (appear to right of intensity)
Code definitions

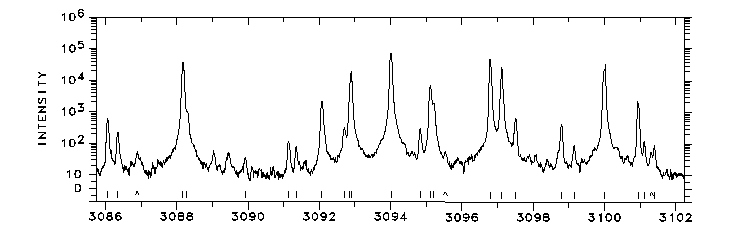

Photoelectric spectrum

3086-3102 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
