Spectrum of Platinum homepage

Lines and intensities in the range 3102-3118 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3103.60      32211.3        260     Pt I     21967- 54178  N
  3103.77      32209.5        170     Pt II    42031- 74241  K
  3104.61      32200.8        220     Pt II   105962- 73761  K
  3105.30      32193.7        240     Pt II   106434- 74241  K
  3107.99      32165.8         39
  3108.71      32158.4         38
  3109.3597    32151.635       82     Pt II    32237- 64388  21
  3110.30      32141.9         49     Pt I     26638- 58780  AN
  3110.30      32141.9         49     Pt II   104090- 71948  AK
  3111.74      32127.0         82     Pt II    64003- 96131  K
  3112.80      32116.1        150     Pt II    54373- 86489  K
  3113.94      32104.3         42
  3115.64      32086.8        850     Ne II                  C
  3116.684     32076.08      1100     Ne II                  C
  3116.7380    32075.525     1300     Pt II    37877- 69953  17
  3117.155     32071.24       410     Ne II                  C
  3117.8076    32064.522      730     Pt II    95803- 63738  12
  3117.9807    32062.742    29000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

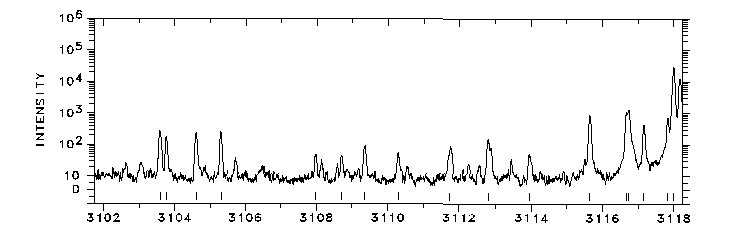

Photoelectric spectrum

3102-3118 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
