Lines and intensities in the range 3470-3486 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3470.07      28809.6        210
  3470.4444    28806.505     1100
  3470.6071    28805.154      530
  3472.5701    28788.871   750000     Ne I                   G
  3474.78      28770.6                Rh I
  3475.241     28766.75       670     Ne II                  C
  3475.4502    28765.015              Fe I                   MR
  3476.37      28757.4        160
  3476.7600    28754.179     8800     Pt I      6567- 35321
  3477.6466    28746.848    14000     Ne II                  G
  3479.5193    28731.377   130000     Ne II                  G
  3480.7181    28721.482   250000     Ne II                  G
  3481.1429    28717.977     2500     Pt I     68912- 40194  AN
  3481.1429    28717.977              Pd I                   A
  3481.9337    28711.455   360000     Ne II                  G
  3483.4231    28699.179    18000     Pt I     10116- 38815  E
  3485.2641    28684.020    92000     Pt I     10131- 38815  E
Character descriptor definitions (appear to right of intensity)
Code definitions

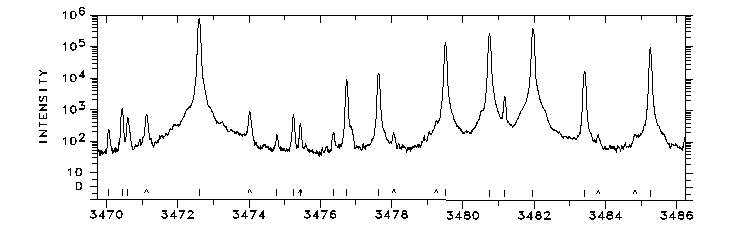

Photoelectric spectrum

3470-3486 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
