Spectrum of Platinum homepage

Lines and intensities in the range 3454-3470 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3454.1940    28942.022   410000     Ne I                   G
  3454.7720    28937.180    30000     Ne II                  G
  3455.7881    28928.672      190     Pt II    48591- 77519  K
  3456.6081    28921.809    43000     Ne II                  G
  3457.0079    28918.464     3300     Ne II                  G
  3457.084     28917.83      3300     Ne II                  C
  3459.3197    28899.140    50000     Ne II                  G
  3459.4946    28897.679      820     Pt I     26638- 55536  E
  3460.5233    28889.089   170000     Ne I                   G
  3462.03      28876.5                Rh I
  3463.9094    28860.849     1200 U   Pt I     64182- 35321  H
  3463.9340    28860.644     3600 P   Pt I     64182- 35321  H
  3463.9873    28860.200     1000     Pt I     64182- 35321  H
  3464.3377    28857.281   240000     Ne I                   G
  3465.8607    28844.601              Fe I                   R
  3466.5778    28838.634   290000     Ne I                   G
Character descriptor definitions (appear to right of intensity)
Code definitions

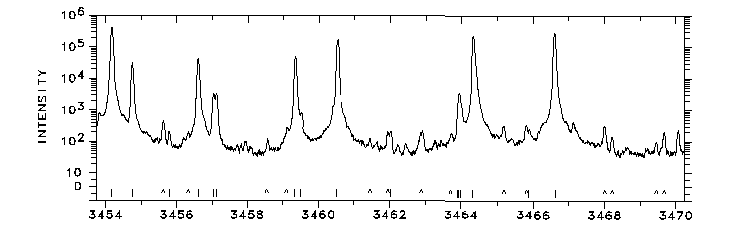

Photoelectric spectrum

3454-3470 Å

                      WAVELENGTH (ANGSTROMS) - AIR
