Lines and intensities in the range 3502-3518 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3502.5154    28542.744              Rh I
  3503.5820    28534.055    45000     Ne II                  G
  3505.40      28519.3         80     Pt II    41434- 69953  K
  3505.6874    28516.919     2300 C   Pt I     65361- 36844  N
  3505.85      28515.6        220     Pt II   116689- 88173  K
  3506.6335    28509.226      580     Pt I     68703- 40194  N
  3507.364     28503.29      2800     Ne II                  C
  3508.8500    28491.217    24000     Pt II   101517- 73026  K
  3509.68      28484.5         98
  3510.7214    28476.029    54000     Ne I                   G
  3510.9507    28474.170      860
  3511.5797    28469.07      4200     Ne II                  C
  3512.25      28463.6        240
  3514.4480    28445.835     2600     Pt I     62567- 34122  N
  3514.7134    28443.688    15000     Pt I     15501- 43945  E
  3515.1899    28439.832   260000     Ne I                   G
  3516.1820    28431.808      480     Pt I     66967- 38536  N
  3516.9422    28425.663              Pd I
Character descriptor definitions (appear to right of intensity)
Code definitions

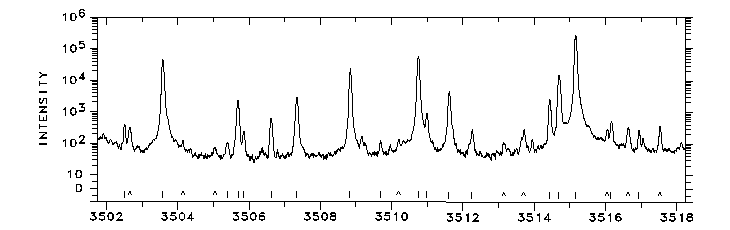

Photoelectric spectrum

3502-3518 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
