Spectrum of Platinum homepage

Lines and intensities in the range 3518-3534 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3518.4850    28413.199      600
  3520.4707    28397.172  1700000     Ne I                   G
  3521.54      28388.6        850
  3522.6501    28379.604      350
  3522.724     28379.01       550     Ne II                  C
  3523.5520    28372.341      400 U   Pt I     64668- 36296  H
  3523.5736    28372.167     2000 P   Pt I     64668- 36296  H
  3523.6105    28371.870      350 P   Pt I     64668- 36296  H
  3525.51      28356.6        430
  3526.71      28346.9        330     Pt II    42031- 70379  K
  3527.74      28338.7        150     Pt II   111162- 82824  K
  3528.03      28336.3                Rh I
  3528.5348    28332.276    14000     Pt I     21967- 50299  N
  3528.9426    28329.002      500     Pt II   121651- 93322  K
  3531.7516    28306.471     1300 L   Pt I     13496- 41802  E
Character descriptor definitions (appear to right of intensity)
Code definitions

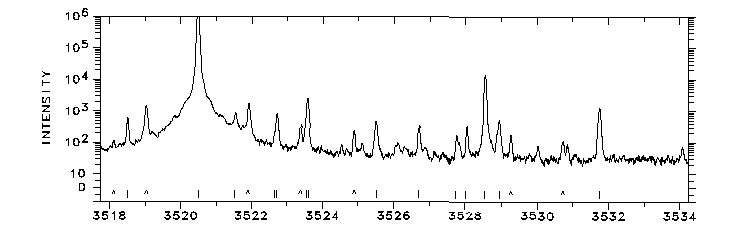

Photoelectric spectrum

3518-3534 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
