Lines and intensities in the range 3534-3550 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3534.69      28282.9        150
  3534.94      28280.9         62
  3535.10      28279.7         68
  3535.8934    28273.315     2500 L   Pt II    36484- 64757  16
  3537.002     28264.45       630     Ne II                  C
  3537.5014    28260.463      430     Pt II   110158- 81897  K
  3537.9757    28256.674     5300     Ne II                  G
  3538.26      28254.4        190
  3538.39      28253.4         78
  3539.897     28241.34       550     Ne II                  C
  3542.2406    28222.654     8500     Ne II                  G
  3542.8452    28217.838   130000     Ne II                  G
  3543.7907    28210.310     8700     Ne II                  G
  3544.14      28207.5        210
  3544.815     28202.16       140     Ne II                  C
  3545.0094    28200.612      650     Pt I     26638- 54839  E
  3546.2099    28191.065     2700     Ne II                  G
  3546.33      28190.1        320     Pt II   111162- 82972  K
  3548.32      28174.3        180
  3548.5211    28172.705    14000     Pt II   101199- 73026  23
  3548.8143    28170.377      740     Pt I     60790- 32620  E
  3548.9635    28169.193      430     Pt II   121651- 93482  K
Character descriptor definitions (appear to right of intensity)
Code definitions

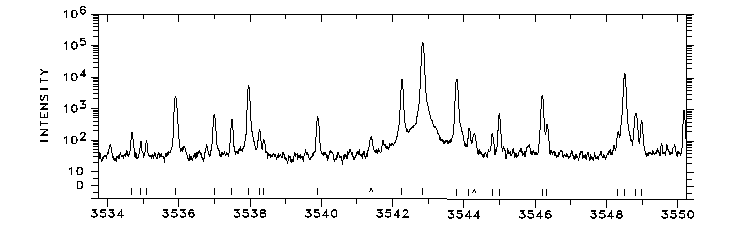

Photoelectric spectrum

3534-3550 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
