Spectrum of Platinum homepage

Lines and intensities in the range 3550-3566 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3550.1696    28159.624      950     Pt I     68947- 40787  N
  3551.3553    28150.222     3200 L   Pt II    37877- 66028  22
  3551.557     28148.62      1600 H   Ne II                  C
  3553.07      28136.6                Pd I
  3554.3563    28126.455     1300
  3557.313     28103.08       750     Ne II                  C
  3557.8055    28099.188    64000     Ne II                  G
  3559.8455    28083.086     2500 P   Ne II                  A
  3559.8455    28083.086     2500 P   Pt I     64379- 36296  AH
  3559.8748    28082.855     3500 P   Pt I     64379- 36296  H
  3559.9178    28082.515     1000 P   Pt I     64379- 36296  H
  3561.1990    28072.413    46000     Ne II                  G
  3562.9541    28058.584     1400     Ne I                   B
  3563.5851    28053.617      660     Pt I     65395- 37342  N
  3564.6881    28044.936     1900     Pt I     65387- 37342  N
  3564.9264    28043.062      760     Pt I     21967- 50010  N
  3565.0472    28042.111     1800
  3565.3790    28039.502              Fe I                   R
  3565.8232    28036.008    34000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

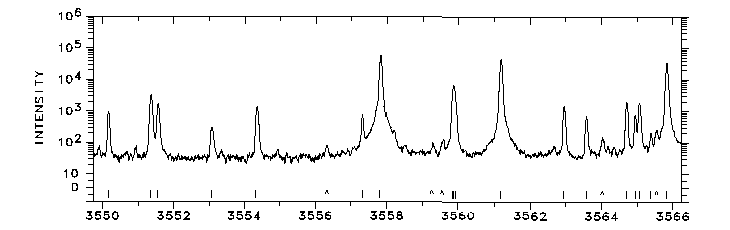

Photoelectric spectrum

3550-3566 Å

                      WAVELENGTH (ANGSTROMS) - AIR
