Spectrum of Platinum homepage

Lines and intensities in the range 3870-3886 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3875.7150    25794.380    22000     Pt I     64330- 38536  N
  3876.9749    25785.997     1000     Pt I     59908- 34122  E
  3878.3549    25776.823     2600
  3878.5733    25775.371              Fe I                   Q
  3880.8488    25760.258     1500     Pt I     59882- 34122  E
  3882.3976    25749.982     2100     Pt I     59872- 34122  E
  3885.2172    25731.295     1200     Pt I     64267- 38536  N
  3886.2823    25724.243              Fe I                   Q
Character descriptor definitions (appear to right of intensity)
Code definitions

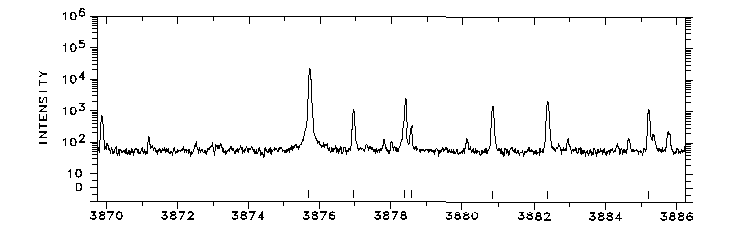

Photoelectric spectrum

3870-3886 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
