Spectrum of Platinum homepage

Lines and intensities in the range 3854-3870 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3854.5252    25936.178     2000     Pt II   101517- 75581  K
  3855.24      25931.4        180
  3856.3716    25923.760              Fe I                   Q
  3856.53      25922.7                Rh I
  3856.78      25921.0        160
  3857.817     25914.05       960     Ne II                  C
  3858.07      25912.3        280
  3859.9115    25899.986              Fe I                   R
  3860.86      25893.6        210
  3863.2223    25877.790     3900     Pt I     18566- 44444  E
  3864.1005    25871.909       94
  3865.7875    25860.619      530     Pt I     62705- 36844  N
  3868.4209    25843.015    22000     Pt I     64379- 38536  N
  3868.93      25839.6        160
  3869.8816    25833.261      640     Pt II   101199- 75365  K
Character descriptor definitions (appear to right of intensity)
Code definitions

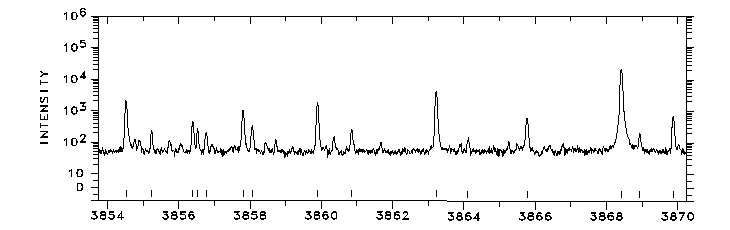

Photoelectric spectrum

3854-3870 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
