Spectrum of Platinum homepage

Lines and intensities in the range 3838-3854 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3838.2891    26045.886              Mg I
  3838.6561    26043.396      670     Pt I     68703- 42660  N
  3839.4742    26037.847      500
  3840.4953    26030.924     3900     Ne II                  C
  3841.0480    26027.179              Fe I                   Q
  3842.9636    26014.205      980     Pt II   101199- 75184  20
  3843.24      26012.3        130     Ne III                 L
  3844.88      26001.2        160     Ne III                 L
  3847.78      25981.6        220     Ne III                 L
  3850.41      25963.9        340     Pt II   110146- 84182  K
  3852.13      25952.3        110
Character descriptor definitions (appear to right of intensity)
Code definitions

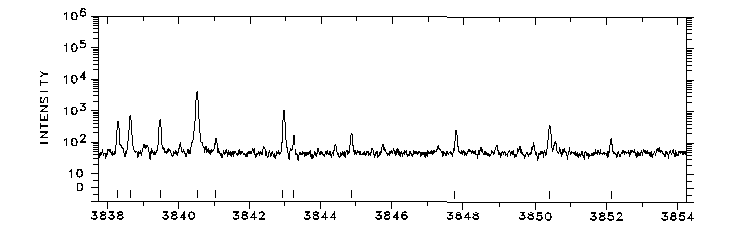

Photoelectric spectrum

3838-3854 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
