Spectrum of Platinum homepage

Lines and intensities in the range 3918-3934 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3919.50      25506.2        210
  3920.2580    25501.304              Fe I                   Q
  3920.63      25498.9        220
  3920.78      25497.9        190
  3921.79      25491.3        170
  3922.9559    25483.766    86000 C   Pt I     55640- 30156  E
  3923.0660    25483.051      370 U
  3925.2718    25468.731     3500     Pt I     60790- 35321  E
  3925.3359    25468.315    22000     Pt I     15501- 40970  E
  3926.3831    25461.523     1700     Pt I     68121- 42660  N
  3927.9199    25451.562              Fe I                   Q
  3930.2967    25436.170              Fe I                   Q
  3931.83      25426.3        480
  3933.465     25415.68      3700     Ne II                  C
  3933.66      25414.4                Ca II
Character descriptor definitions (appear to right of intensity)
Code definitions

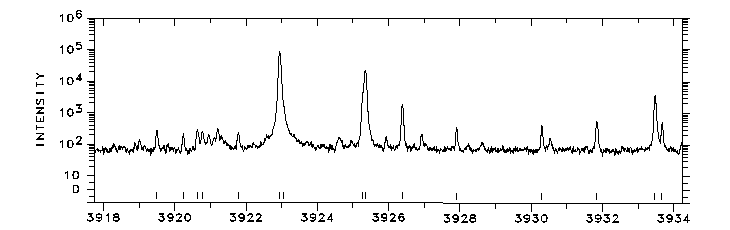

Photoelectric spectrum

3918-3934 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
