Spectrum of Platinum homepage

Lines and intensities in the range 3934-3950 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3941.5998    25363.230     2100     Pt I     62705- 37342  N
  3942.262     25358.97      8600     Ne II                  C
  3943.99      25347.9                Al I
  3944.11      25347.1        180     Pt I     68006- 42660  N
  3946.63      25330.9        170
  3948.3325    25319.981     3000 P   Pt I     13496- 38815  H
  3948.3881    25319.625    14000 P   Pt I     13496- 38815  H
  3948.4117    25319.474     4000 U   Pt I     13496- 38815  H
  3948.59      25318.3        240     Pt II    46046- 71364  K
Character descriptor definitions (appear to right of intensity)
Code definitions

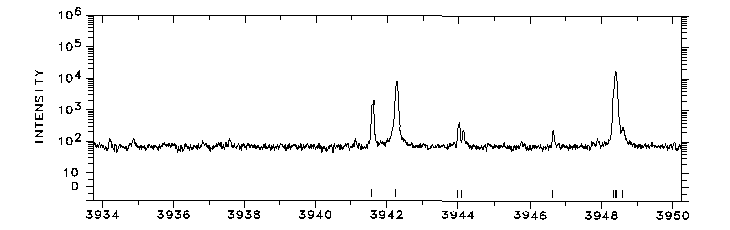

Photoelectric spectrum

3934-3950 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
