Spectrum of Platinum homepage

Lines and intensities in the range 4046-4062 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4046.4498    24706.042     2100 P   Pt II    36484- 61190  J
  4046.4749    24705.889     1800 U   Pt II    36484- 61190  J
  4049.60      24686.8        270
  4053.1114    24665.436      220     Pt II    96614- 71948  27
  4054.43      24657.4        130
  4054.7658    24655.373     4400     Pt I     21967- 46622  E
  4055.11      24653.3        400
  4060.36      24621.4        610     Pt I     18566- 43187  N
  4061.16      24616.6        170     Pt I     65132- 40516  N
  4061.6597    24613.526      690     Pt II    29261- 53875  18
Character descriptor definitions (appear to right of intensity)
Code definitions

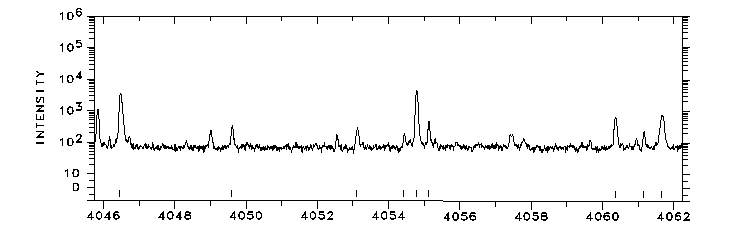

Photoelectric spectrum

4046-4062 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
