Spectrum of Platinum homepage

Lines and intensities in the range 4062-4078 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4062.33      24609.5       1400
  4062.9730    24605.570    11000     Ne II                  G
  4063.5940    24601.810              Fe I                   Q
  4065.7046    24589.039    11000     Pt II   101199- 76610  22
  4065.8895    24587.921     6000 U   Pt I     60884- 36296  H
  4065.9283    24587.686    16000 P   Pt I     60884- 36296  H
  4066.09      24586.7        460     Pt I     59908- 35321  N
  4066.63      24583.4        220
  4070.3844    24560.769     1900     Pt I     59882- 35321  E
  4071.55      24553.7        560
  4071.7379    24552.605              Fe I                   Q
  4071.85      24551.9        200
  4072.1002    24550.420      210     Pt I     59872- 35321  N
Character descriptor definitions (appear to right of intensity)
Code definitions

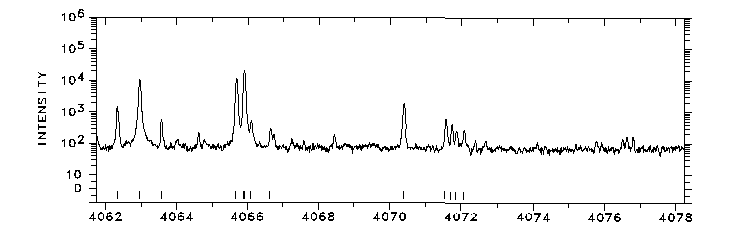

Photoelectric spectrum

4062-4078 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
