Lines and intensities in the range 4206-4222 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4206.5022    23766.025     3000     Ne II                  G
  4208.60      23754.2       1400     Pt II   101517- 77763  K
  4213.09      23728.9       5100     Pt I     60573- 36844  N
  4213.77      23725.0       2600     Pt I     68169- 44444  N
  4215.02      23718.0        970     Pt I     64505- 40787  N
  4217.171     23705.90     26000     Ne II                  C
  4218.52      23698.3       1100     Pt I     64668- 40970  N
  4219.369     23693.55      7300     Ne II                  C
  4219.7457    23691.438   120000     Ne II                  G
  4220.8932    23684.997    20000     Ne II                  G
  4221.0827    23683.933     4500     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

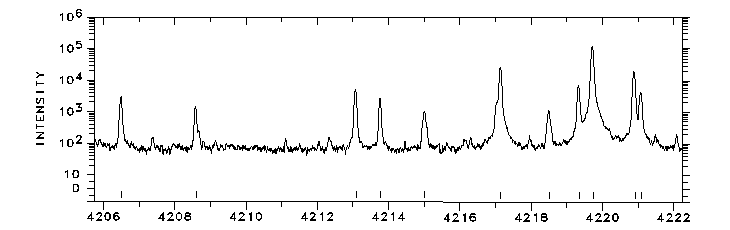

Photoelectric spectrum

4206-4222 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
