Spectrum of Platinum homepage

Lines and intensities in the range 4222-4238 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4223.43      23670.8        180
  4223.6790    23669.376      480     Pt II    32918- 56587  A
  4223.6790    23669.376      480     Pt II    54373- 78043  AK
  4223.84      23668.5        300     Pt II   110158- 86489  K
  4224.01      23667.5        270     Ne III                 L
  4224.473     23664.93      3000     Ne II                  C
  4224.642     23663.98      3600     Ne II                  C
  4225.20      23660.9       2100     Pt II   101199- 77538  K
  4226.03      23656.2        400     Ne III                 L
  4226.72      23652.3                Ca I
  4229.34      23637.7        510     Ne III                 L
  4231.09      23627.9       1700     Pt I     68072- 44444  N
  4231.5332    23625.443    20000     Ne II                  G
  4231.6363    23624.868    36000     Ne II                  G
  4233.8467    23612.534    32000     Ne II                  G
  4235.29      23604.5        280
  4237.37      23592.9        190     Pt I     65395- 41802  N
Character descriptor definitions (appear to right of intensity)
Code definitions

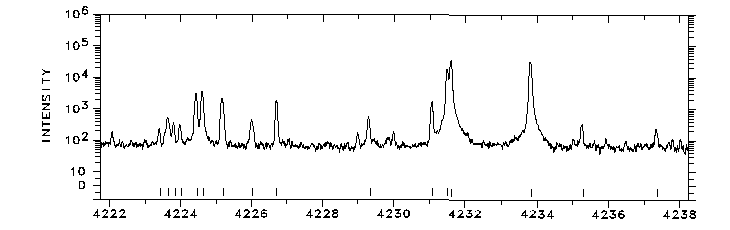

Photoelectric spectrum

4222-4238 Å

                      WAVELENGTH (ANGSTROMS) - AIR
