Lines and intensities in the range 4238-4254 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4239.9190    23578.717     7300     Ne II                  G
  4240.1049    23577.683    21000     Ne II                  G
  4240.72      23574.3        190     Pt I     68006- 44432  N
  4241.59      23569.4       1200
  4242.040     23566.93      2100     Ne II                  C
  4242.2094    23565.987     4400     Ne II                  G
  4242.86      23562.4        180     Pt I     68006- 44444  N
  4244.10      23555.5        390
  4244.17      23555.1       1100     Pt II    42031- 65587  K
  4245.42      23548.2        200
  4245.85      23545.8        310
  4245.99      23545.0        500     Pt I     68275- 44730  N
  4246.99      23539.5        450
  4247.6735    23535.673     3200     Pt I     64505- 40970  E
  4248.83      23529.3        430
  4250.6462    23519.214    31000     Ne II                  G
  4251.17      23516.3       5100     Pt I     59812- 36296  N
  4251.36      23515.3        390
  4253.87      23501.4        210
Character descriptor definitions (appear to right of intensity)
Code definitions

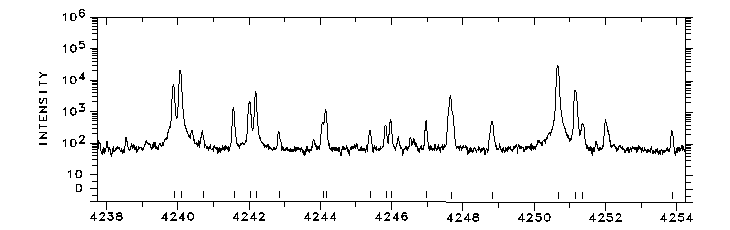

Photoelectric spectrum

4238-4254 Å

                      WAVELENGTH (ANGSTROMS) - AIR
