Spectrum of Platinum homepage

Lines and intensities in the range 4286-4302 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4288.0507    23314.060     7100     Pt I     15501- 38815  E
  4288.3866    23312.234      810     Pt II    37877- 61190  31
  4289.57      23305.8        170
  4289.73      23304.9                Cr I
  4290.374     23301.44     11000     Ne II                  C
  4290.602     23300.20      8000     Ne II                  C
  4290.8991    23298.584     4700     Pt I     60640- 37342  E
  4292.60      23289.4        410
  4294.27      23280.3        400
  4294.92      23276.8        670     Pt I     68006- 44730  N
  4296.86      23266.3        710
  4297.01      23265.5       1900
  4298.096     23259.57      1500     Ne II                  C
  4301.02      23243.8        290
  4301.09      23243.4        320
  4301.27      23242.4        400     Pt I     26638- 49880  N
Character descriptor definitions (appear to right of intensity)
Code definitions

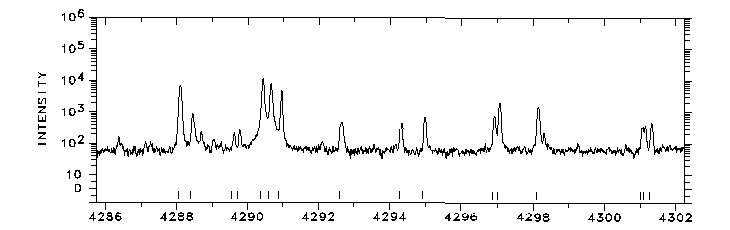

Photoelectric spectrum

4286-4302 Å

                      WAVELENGTH (ANGSTROMS) - AIR
