Spectrum of Platinum homepage

Lines and intensities in the range 4302-4318 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4302.4207    23236.193      430     Pt I     18566- 41802  E
  4303.26      23231.7        430
  4305.87      23217.6        160
  4306.22      23215.7       1300     Ne I
  4307.80      23207.2        440     Pt II   116689- 93482  K
  4307.9021    23206.628              Fe I                   Q
  4309.1759    23199.768     3600     Pt I     60790- 37590  E
  4310.16      23194.5        340
  4310.31      23193.7        300
  4311.15      23189.1        150     Pt II    46046- 69235  AK
  4311.15      23189.1        150     Pt II   105086- 81897  AK
  4312.59      23181.4        470
  4317.30      23156.1        720     Pt II   101199- 78043  K
  4317.56      23154.7         91
Character descriptor definitions (appear to right of intensity)
Code definitions

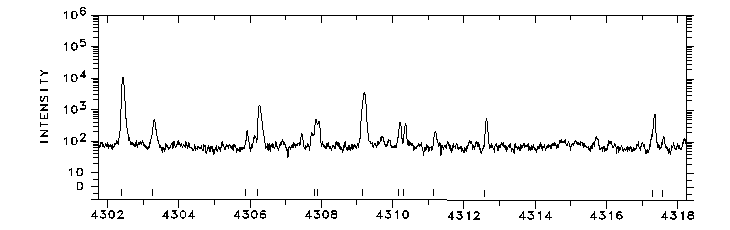

Photoelectric spectrum

4302-4318 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
