Spectrum of Platinum homepage

Lines and intensities in the range 4318-4334 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4320.10      23141.1        280
  4320.33      23139.9        260
  4320.59      23138.5       1100     Pt II   105962- 82824  K
  4321.33      23134.5        250     Pt I     63922- 40787  N
  4321.74      23132.3        150
  4322.3727    23128.937     5800     Ne II                  G
  4322.7409    23126.967     5700     Ne II                  G
  4324.62      23116.9        650
  4324.99      23114.9        560     Pt I     60884- 37769  N
  4325.235     23113.63      2900     Ne II                  C
  4325.7618    23110.816              Fe I                   Q
  4327.0533    23103.919    17000     Pt I     56784- 33680  E
  4330.74      23084.3         70
  4331.08      23082.4         65     Pt II   106434- 83352  K
Character descriptor definitions (appear to right of intensity)
Code definitions

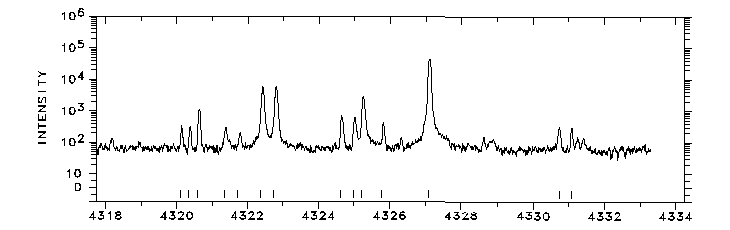

Photoelectric spectrum

4318-4334 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
