Spectrum of Platinum homepage

Lines and intensities in the range 1904-1920 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1904.0316    52520.137     3900     Pt I         0- 52520  N
  1904.2996    52512.745      890
  1904.4085    52509.743     7500     Pt II   109527- 57018  K
  1904.5068    52507.03      1100     Ne II                  C
  1904.6890    52502.01       110     Ne II                  C
  1904.78      52499.5         71
  1905.53      52478.8        120
  1905.73      52473.3         46
  1906.1365    52462.140     2200     Pt II   114127- 61665  K
  1906.4987    52452.17       770     Ne II                  C
  1907.3879    52427.721      500     Pt II    27255- 79683  K
  1907.4940    52424.80     57000     Ne II                  C
  1908.12      52407.6        220
  1908.6190    52393.904     5700     Pt II    43737- 96131  K
  1908.74      52390.6        160
  1909.3386    52374.157     6200
  1909.4039    52372.366     4100     Pt II    43737- 96109  K
  1909.4638    52370.723     4900
  1911.0142    52328.235     1700     Pt II   109346- 57018  K
  1911.54      52313.8        350
  1911.7092    52309.211   140000     Pt II     9356- 61665  04
  1912.11      52298.2        310
  1912.7295    52281.308     3100     Pt II    18097- 70379  10
  1913.57      52258.3        130
  1914.1170    52243.411     1700     Pt I       775- 53019  D
  1914.7283    52226.73       250     Ne II                  C
  1915.2183    52213.369     6900     Pt I      6567- 58780  N
  1915.6543    52201.485     1100     Pt I     13496- 65697  N
  1915.74      52199.2        150
  1916.0818    52189.84    300000     Ne II                  C
  1917.43      52153.1        100
  1917.90      52140.4        380     Pt II    58062-110202  K
  1918.12      52134.4         92     Pt II    58062-110196  K
  1918.6523    52119.919      980     Pt II    23461- 75581  09
  1919.19      52105.3         55     Pt II    36484- 88589  K
  1919.47      52097.7        150
  1919.57      52095.0        110
  1919.76      52089.8        270
  1919.9914    52083.566     3700     Pt II    18097- 70181  08
Character descriptor definitions (appear to right of intensity)
Code definitions

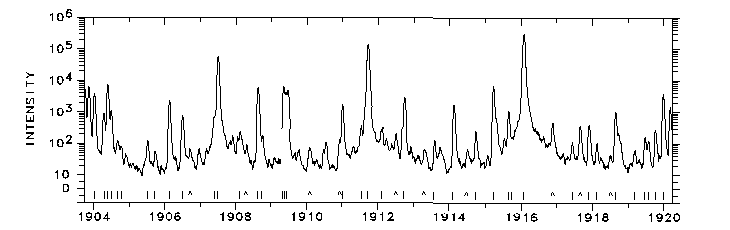

Photoelectric spectrum

1904-1920 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
