Spectrum of Platinum homepage

Lines and intensities in the range 1920-1936 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1920.1812    52078.42      1400     Ne II                  C
  1920.43      52071.7         50
  1920.79      52061.9        120
  1921.35      52046.7        530
  1921.43      52044.6        970
  1922.2695    52021.841      430     Pt II    13329- 65351  05
  1922.57      52013.7        120     Pt I     13496- 65510  N
  1922.96      52003.2         35
  1923.23      51995.9        120
  1923.4591    51989.668     4700     Pt I     10116- 62106  N
  1923.70      51983.2        140
  1923.9493    51976.422     1100     Pt II    53749-105726  K
  1924.1654    51970.58       740     Ne II                  C
  1924.4245    51963.587     8200
  1924.70      51956.1        670     Pt II    50564-102520  K
  1925.0910    51945.596     1100     Pt I     10116- 62062  N
  1925.5775    51932.473      820     Pt I       775- 52708  D
  1925.66      51930.2        300     Pt I     10131- 62062  N
  1926.1535    51916.942     2300
  1926.2370    51914.692     6400     Pt I      6567- 58482  N
  1926.6198    51904.377      840     Pt II    23461- 75365  K
  1926.70      51902.2        620     Pt II    41434- 93336  K
  1926.88      51897.4        770
  1927.20      51888.8         91
  1927.29      51886.3        170
  1927.53      51879.9        450     Pt II    43737- 95617  K
  1927.74      51874.2        160
  1928.3541    51857.696     1100     Pt II    21168- 73026  07
  1928.4320    51855.602    15000     Pt II    18097- 69953  05
  1928.7297    51847.597      740     Pt II    53749-105597  K
  1928.7866    51846.07      3800     Ne II                  C
  1929.04      51839.3        880
  1929.1426    51836.500     5900     Pt II    27255- 79092  K
  1929.2449    51833.752   100000     Pt II     9356- 61190  05
  1929.4586    51828.009     1900     Pt II    29030- 80858  14
  1929.5799    51824.752      750
  1929.6829    51821.986    14000     Pt II    29261- 81083  K
  1930.0345    51812.55    120000     Ne II                  C
  1930.7617    51793.031      960 D
  1930.9056    51789.171              C I                    B
  1931.02      51786.1        170     Ne III                 L
  1931.44      51774.8        120     Ne III                 L
  1932.03      51759.0        110     Pt I      6567- 58326  N
  1932.2433    51753.317     8200     Pt I         0- 51753  D
  1932.7391    51740.041     1900     Pt II    46046- 97786  K
  1933.1089    51730.144       75     Pt II    37877- 89607  18
  1933.3618    51723.377     1400     Pt II    23461- 75184  05
  1933.5298    51718.88      3200     Ne II                  C
  1933.84      51710.6         67
  1934.0164    51705.869     2300     Pt II    23875- 75581  10
  1934.3690    51696.445    70000     Pt I       823- 52520  N
  1934.64      51689.2        490     Pt II    36484- 88173  K
  1934.8150    51684.528     1100
Character descriptor definitions (appear to right of intensity)
Code definitions

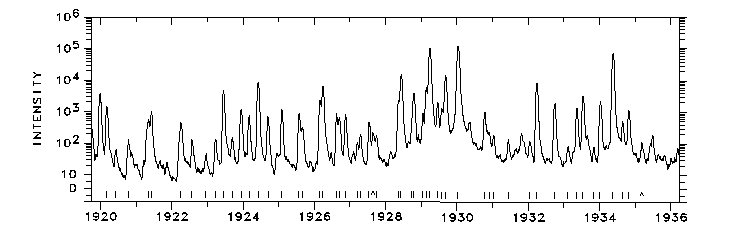

Photoelectric spectrum

1920-1936 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
