Spectrum of Platinum homepage

Lines and intensities in the range 1952-1968 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1952.33      51220.8         59     Ne III                 L
  1952.6940    51211.301     1400     Pt II   105086- 53875  K
  1952.94      51204.9         50
  1953.2467    51196.810      940     Pt II    27255- 78452  K
  1953.77      51183.1        540
  1954.0479    51175.82       920     Ne II                  C
  1954.44      51165.6        150     Pt II    42031- 93197  K
  1954.7436    51157.604    12000     Pt II    23461- 74619  06
  1955.54      51136.8        620     Pt II    46046- 97183  K
  1956.06      51123.2        200     Pt I     13496- 64619  N
  1956.4950    51111.810      840
  1956.76      51104.9        120     Ne III                 L
  1956.87      51102.0        220
  1957.0418    51097.529      680     Pt I         0- 51097  D
  1957.64      51081.9        240     Ne III                 L
  1957.8427    51076.626              Fe I                   S
  1958.05      51071.2         41     Ne III                 L
  1958.5027    51059.415     7400     Pt II    13329- 64388  08
  1958.94      51048.0        130
  1960.0384    51019.409     1300     Pt I     13496- 64515  N
  1960.50      51007.4        110
  1961.20      50989.2        510
  1961.3804    50984.501     3300     Pt II    50564-101549  K
  1961.5244    50980.758     4400     Pt I     10116- 61097  N
  1961.6527    50977.424     1600     Pt I       775- 51753  D
  1961.7910    50973.83       460     Ne II                  C
  1962.1105    50965.529     2700     Pt I     10131- 61097  N
  1962.3409    50959.545     3500     Pt II    16820- 67780  K
  1962.66      50951.3        220
  1963.1429    50938.726    17000     Pt I      6567- 57506  D
  1964.5758    50901.574     2000     Pt I      6140- 57041  N
  1965.4370    50879.270     1800     Pt II    23875- 74754  12
  1965.92      50866.8        240
  1966.83      50843.2         96     Ne III                 L
  1967.00      50838.8        310
  1967.15      50835.0         85
  1967.22      50833.2         80     Pt II    50564-101397  K
  1967.48      50826.4         29
  1967.87      50816.4        300     Pt II    58491-109307  K
Character descriptor definitions (appear to right of intensity)
Code definitions

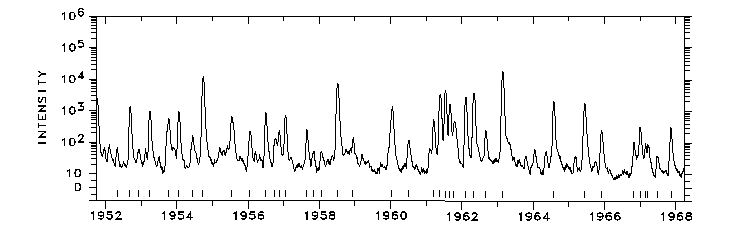

Photoelectric spectrum

1952-1968 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
