Lines and intensities in the range 1998-2014 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1998.16      50046.0        330
  1998.41      50039.8        140     Pt I     18566- 68606  N
  1998.6681    50033.32       190     Ne II                  C
  1998.86      50028.5        270
  1999.28      50018.0         44
  1999.5947    50010.135      280     Pt I         0- 50010  N
  1999.40      49998.8         76     Ne III                 L
  2000.03      49983.1         33
  2000.3426    49975.245      450     Pt II    58062-108037  K
  2000.3826    49974.246      550
  2000.4449    49972.690      660     Pt II   111162- 61190  K
  2000.61      49968.6        340
  2000.88      49961.8         43
  2001.16      49954.8         23
  2001.49      49946.6        210     Ne III                 L
  2001.8736    49937.03       570     Ne II                  C
  2002.82      49913.4        280     Ne III                 L
  2003.1419    49905.417      790     Pt II    32918- 82824  K
  2003.59      49894.3        140
  2003.8556    49887.646      630     Pt II    53749-103637  K
  2003.92      49886.0        210
  2004.1273    49880.883     9300     Pt I         0- 49880  D
  2004.3230    49876.013     1800     Pt II    29030- 78906  12
  2004.83      49863.4        250
  2005.01      49858.9        110
  2005.4895    49847.007      790     Pt II   106434- 56587  K
  2005.90      49836.8         35     Pt II    41434- 91271  K
  2006.21      49829.1        100
  2006.43      49823.6         72
  2007.0084    49809.29      2000     Ne II                  C
  2007.25      49803.3        110     Pt I     10116- 59920  N
  2007.3725    49800.256      690     Pt I     10116- 59916  N
  2007.4809    49797.568      510
  2007.7572    49790.715    58000     Pt II   101199- 51408  03
  2008.60      49769.8        280
  2008.67      49768.1        210
  2008.88      49762.9         32
  2009.42      49749.5         56
  2010.44      49724.3        180
  2010.68      49718.3        220
  2011.0252    49709.814     1100     Pt II   115060- 65351  K
  2011.53      49697.3        360
  2012.1226    49682.706     3900     Pt II    18097- 67780  K
  2012.3291    49677.610      370
  2012.5939    49671.076     2700     Pt I     13496- 63167  N
  2012.7156    49668.071     1900     Pt II    50564-100232  K
  2013.0290    49660.341      370     Pt I     10131- 59792  N
  2013.36      49652.2        160
  2013.56      49647.2        250     Pt II    21717- 71364  K
Character descriptor definitions (appear to right of intensity)
Code definitions

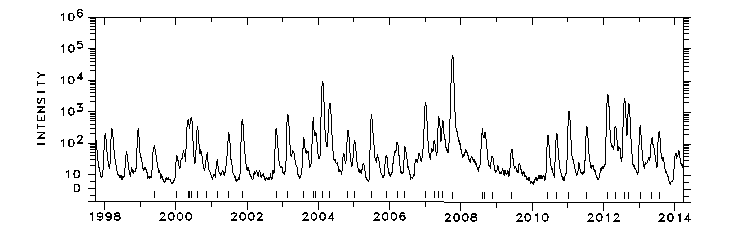

Photoelectric spectrum

1998-2014 Å

                      WAVELENGTH (ANGSTROMS) - AIR
