Spectrum of Platinum homepage

Lines and intensities in the range 3134-3150 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3134.065     31898.20       490     Ne II                  C
  3134.134     31897.50       450     Ne II                  C
  3135.30      31885.6         99     Pt I     64505- 32620  N
  3135.8153    31880.395     2400     Ne II                  G
  3136.476     31873.68       680     Ne II                  C
  3138.056     31857.63       810     Ne II                  C
  3139.3870    31844.126   130000     Pt I       775- 32620  E
  3140.358     31834.28       710     Ne II                  C
  3141.3320    31824.410    54000 S   Ne II                  G
  3141.6559    31821.130     2100     Pt I     18566- 50387  N
  3142.20      31815.6        280     Pt II   106434- 74619  K
  3143.20      31805.5        210     Pt II   110258- 78452  K
  3143.7204    31800.233     8900     Ne II                  G
  3144.0872    31796.523      540     Pt II    29261- 61058  11
  3145.0199    31787.094     1100     Pt II    34647- 66434  19
  3145.433     31782.92       140     Ne II                  C
  3147.73      31759.7        280
  3148.08      31756.2         42
  3148.6107    31750.844     1500     Ne I                   I
  3148.6805    31750.140     2000     Ne II                  G
  3149.09      31746.0         44
  3149.22      31744.7         73     Pt II   109507- 77763  K
Character descriptor definitions (appear to right of intensity)
Code definitions

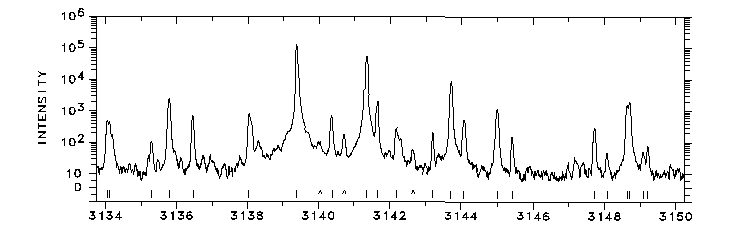

Photoelectric spectrum

3134-3150 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
