Lines and intensities in the range 3150-3166 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3151.1364    31725.396     6000     Ne II                  G
  3151.58      31720.9        900     Pt II   105962- 74241  AK
  3151.58      31720.9        900     Ne II                  A
  3151.58      31720.9        900     Pt II   114256- 82535  AK
  3151.95      31717.2         38     Pt II    46046- 77763  K
  3152.57      31711.0         63     Pt I     68006- 36296  N
  3153.09      31705.7        120     Pt II   110158- 78452  K
  3153.4107    31702.516     1300     Ne I                   I
  3153.678     31699.83       620     Ne II                  C
  3153.77      31698.9        100
  3154.51      31691.5         42
  3154.794     31688.62      1500     Ne II                  C
  3156.5625    31670.862    53000     Pt I     10131- 41802  E
  3157.33      31663.2         76
  3157.87      31657.7        140
  3159.0704    31645.721     1800     Pt II    29261- 60907  13
  3159.57      31640.7        210     Pt II   117340- 85700  K
  3159.91      31637.3        140     Ne II                  A
  3159.91      31637.3        140     Ne III                 AL
  3160.28      31633.6        180
  3160.52      31631.2         46     Pt II   114455- 82824  K
  3161.0013    31626.390       56     Pt II   105388- 73761  30
  3162.46      31611.8         89
  3163.10      31605.4         51     Pt I     68947- 37342  N
  3163.578     31600.63       300     Ne II                  C
  3164.231     31594.11       160     Ne II                  C
  3164.4295    31592.129    12000     Ne II                  G
  3164.6618    31589.810    31000     Ne II                  G
  3165.01      31586.3        200     Ne III                 L
  3165.6479    31579.971    11000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

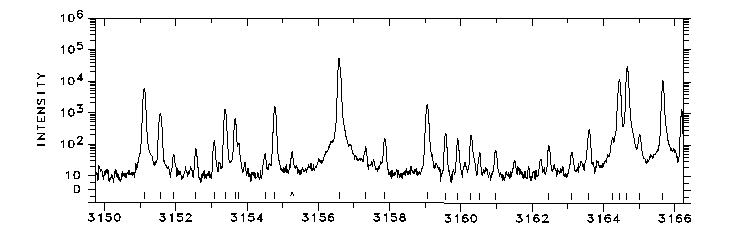

Photoelectric spectrum

3150-3166 Å

                      WAVELENGTH (ANGSTROMS) - AIR
