Lines and intensities in the range 3182-3198 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3184.68      31391.3         72
  3184.88      31389.3        360
  3185.53      31382.9         38
  3187.42      31364.3        600
  3187.5763    31362.729     5700 L   Ne II                  G
  3188.0700    31357.873      450     Pt II    37877- 69235  27
  3188.7410    31351.275    17000     Ne II                  G
  3189.55      31343.3        750     Pt II   105962- 74619  K
  3190.60      31333.0         59     Pt II    50564- 81897  K
  3190.8630    31330.426     7600     Ne II                  G
  3191.10      31328.1        120
  3191.43      31324.9        340     Pt II   105086- 73761  AK
  3191.43      31324.9        340     Pt I     68169- 36844  AN
  3191.75      31321.7         89     Pt I     68912- 37590  N
  3192.5031    31314.331     1300     Pt I     18566- 49880  E
  3194.34      31296.3        520     Pt II    36484- 67780  K
  3194.5754    31294.018    28000     Ne II                  G
  3196.70      31273.2        160     Pt II   109527- 78254  K
  3197.7161    31263.283     4400     Pt II    96614- 65351  12
  3198.5862    31254.779   160000     Ne II                  G
  3198.916     31251.56      3100     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

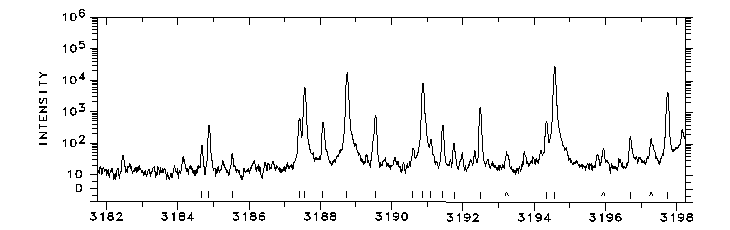

Photoelectric spectrum

3182-3198 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
