Spectrum of Platinum homepage

Lines and intensities in the range 3198-3214 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3198.5862    31254.779   160000     Ne II                  G
  3198.916     31251.56      3100     Ne II                  C
  3199.06      31250.2        970     Pt I     68094- 36844  AN
  3199.06      31250.2        970     Pt II   106434- 75184  AK
  3199.5087    31245.768    48000     Pt II   101199- 69953  13
  3200.01      31240.9        150     Pt I     68831- 37590  N
  3200.7097    31234.044    67000     Pt I     13496- 44730  E
  3201.55      31225.8        140
  3201.70      31224.4        220
  3201.81      31223.3       1200
  3204.0364    31201.615   120000     Pt I      6567- 37769  E
  3205.6023    31186.374     2800     Pt I     65308- 34122  N
  3206.44      31178.2         57     Pt I     68947- 37769  N
  3207.43      31168.6        160     Pt I     68759- 37590  N
  3207.68      31166.2        620     Pt II   110258- 79092  K
  3207.89      31164.1         91
  3208.27      31160.4        170
  3208.84      31154.9        920
  3208.9647    31153.697    17000     Ne II                  G
  3209.3554    31149.905    32000     Ne II                  G
  3210.52      31138.6        490     Pt II   101517- 70379  K
  3211.69      31127.3         73
  3211.994     31124.32       110     Ne II                  C
  3212.3775    31120.602     2100     Pt I     15501- 46622  E
  3213.7348    31107.459    88000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

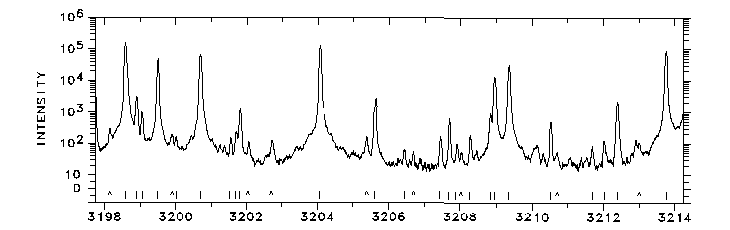

Photoelectric spectrum

3198-3214 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
