Spectrum of Platinum homepage

Lines and intensities in the range 3214-3230 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3214.3262    31101.735   110000     Ne II                  G
  3214.756     31097.58       660     Ne II                  C
  3214.926     31095.93      1400     Ne II                  C
  3216.11      31084.5        240
  3216.45      31081.2         80
  3217.31      31072.9       2200
  3217.98      31066.4        890
  3218.1925    31064.371   430000     Ne II                  G
  3219.14      31055.2        410     Pt II   109507- 78452  K
  3219.49      31051.9        450
  3220.08      31046.2        400
  3220.24      31044.6         82
  3220.34      31043.7         61
  3221.67      31030.8        230
  3223.23      31015.8        110
  3223.75      31010.8        170     Pt I     65132- 34122  N
  3223.98      31008.6        200     Pt II    43737- 74745  K
  3224.8174    31000.556    87000     Ne II                  G
  3225.93      30989.9        160     Pt I     68759- 37769  N
  3226.05      30988.7        150     Pt II   116689- 85700  K
  3227.1645    30978.011     1400     Pt I     18566- 49544  E
  3229.457     30956.02      4000     Ne II                  C
  3229.5717    30954.921   120000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

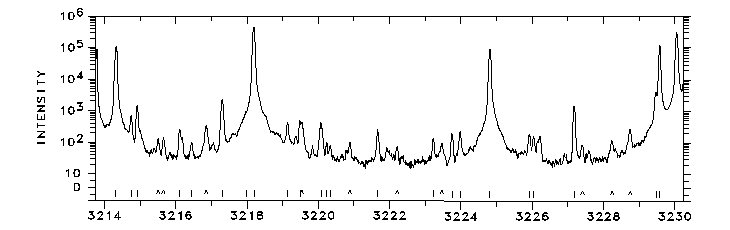

Photoelectric spectrum

3214-3230 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
