Spectrum of Platinum homepage

Lines and intensities in the range 3230-3246 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3230.0698    30950.148   300000     Ne II                  G
  3230.2837    30948.099    18000     Pt I     13496- 44444  E
  3230.4209    30946.784    26000     Ne II                  G
  3232.0240    30931.436    31000     Ne II                  G
  3232.3096    30928.703     5000 U   Pt II   110020- 79092  K
  3232.3731    30928.095   200000 P   Ne II                  G
  3233.4167    30918.113    11000     Pt I     15501- 46419  E
  3235.98      30893.6         59     Pt II   109346- 78452  K
  3238.13      30873.1         60
  3238.48      30869.8         98
  3239.17      30863.2         92
  3239.32      30861.8        140
  3239.89      30856.3         82
  3240.1957    30853.430     7000     Pt I     10116- 40970  E
  3240.73      30848.3         52
  3242.46      30831.9         59
  3242.73      30829.3        240     Pd I
  3242.96      30827.1         58     Pt I     68169- 37342  N
  3243.3963    30822.985     6900     Ne II                  G
  3243.7039    30820.062     1700     Pt II   101199- 70379  28
  3244.0942    30816.354   170000     Ne II                  G
  3245.13      30806.5        140
Character descriptor definitions (appear to right of intensity)
Code definitions

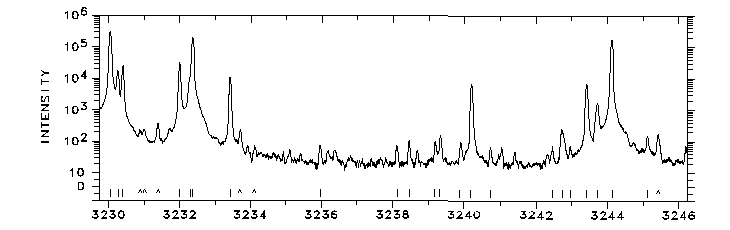

Photoelectric spectrum

3230-3246 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
