Spectrum of Platinum homepage

Lines and intensities in the range 3246-3262 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3246.21      30796.3         57
  3246.77      30791.0         44
  3247.28      30786.1        150
  3247.53      30783.8                Cu I
  3248.1314    30778.053     5000     Ne II                  G
  3248.3449    30776.030    13000 P   Ne II                  G
  3248.3787    30775.710     3100     Ne II                  G
  3248.59      30773.7        290
  3249.26      30767.4         76
  3250.3571    30756.978    29000     Ne II                  G
  3250.82      30752.6        200     Pt I     68094- 37342  N
  3251.09      30750.0        200
  3251.9787    30741.642    47000     Pt I     10131- 40873  E
  3253.18      30730.3        200     Pt I     68072- 37342  N
  3254.72      30715.8         69
  3255.4223    30709.124     3100     Ne II                  G
  3255.9088    30704.536    72000     Pt I      6140- 36844  E
  3256.53      30698.7        930     Pt I     64379- 33680  N
  3257.26      30691.8        120
  3257.84      30686.3        230
  3259.7308    30668.536     8200     Pt I     15501- 46170  E
  3260.14      30664.7        350     Pt I     68006- 37342  N
  3261.0683    30655.958     1300     Pt I     10131- 40787  E
  3261.6887    30650.127     8200     Pt I     64330- 33680  N
Character descriptor definitions (appear to right of intensity)
Code definitions

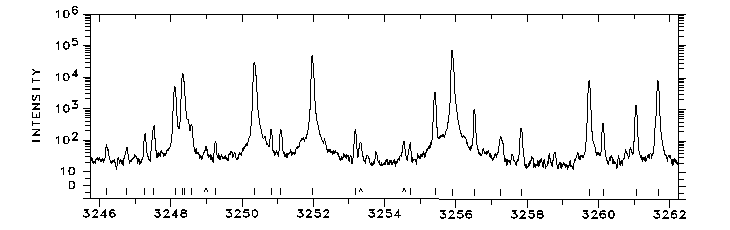

Photoelectric spectrum

3246-3262 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
