Spectrum of Platinum homepage

Lines and intensities in the range 3262-3278 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3262.5311    30642.213      410     Pt II   105388- 74745  26
  3263.4128    30633.935     6400     Ne II                  G
  3263.58      30632.4        920     Pt I     64312- 33680  N
  3263.92      30629.2         94     Pt II    64003- 94633  K
  3266.02      30609.5       2600     Pt II   105794- 75184  K
  3268.4170    30587.034    15000     Pt I     64267- 33680  N
  3268.72      30584.2        130
  3269.71      30574.9        470     Pt II   110258- 79683  K
  3269.8705    30573.438    12000     Ne II                  G
  3270.8010    30564.741    11000     Ne II                  G
  3271.94      30554.1        260
  3272.78      30546.3       1600     Pt I     64668- 34122  N
  3273.56      30539.0         46     Pt II   110146- 79607  K
  3274.00      30534.9        130     Cu I
  3275.1810    30523.866    11000     Ne II                  G
  3276.54      30511.2        130
  3277.19      30505.2         76
Character descriptor definitions (appear to right of intensity)
Code definitions

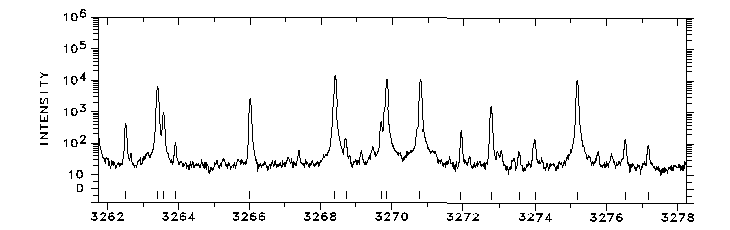

Photoelectric spectrum

3262-3278 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
