Spectrum of Platinum homepage

Lines and intensities in the range 3278-3294 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3278.87      30489.5        120
  3280.30      30476.2        130
  3280.53      30474.1                Rh I
  3280.68      30472.7                Ag I
  3280.83      30471.3        130     Pt I     21967- 52438  N
  3281.24      30467.5        220     Pt II   105086- 74619  AK
  3281.24      30467.5        220     Pt II   119057- 88589  AK
  3281.9670    30460.756    17000     Pt I     64141- 33680  E
  3282.80      30453.0        230
  3283.2046    30449.274     5300     Pt I     13496- 43945  E
  3283.3086    30448.310     7000     Pt I     64128- 33680  E
  3283.54      30446.2                Rh I
  3285.33      30429.6         80
  3285.40      30428.9         77     Pt II   105794- 75365  K
  3286.81      30415.9        120     Pt II   109507- 79092  K
  3287.39      30410.5         94
  3290.2196    30384.356    36000     Pt I     10131- 40516  E
  3290.2517    30384.060     6000 U
  3291.88      30369.0        140
  3293.50      30354.1         90     Pt II   104763- 74409  K
  3293.64      30352.8        210     Pt I     68121- 37769  N
Character descriptor definitions (appear to right of intensity)
Code definitions

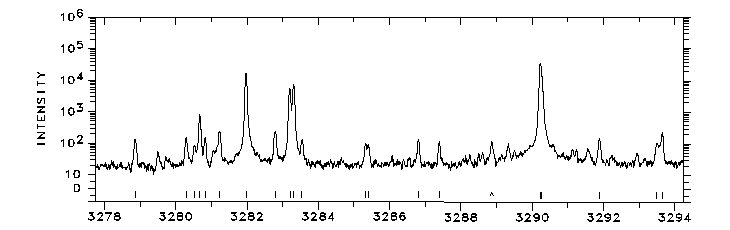

Photoelectric spectrum

3278-3294 Å

                      WAVELENGTH (ANGSTROMS) - AIR
