Spectrum of Platinum homepage

Lines and intensities in the range 3294-3310 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3294.92      30341.0        330     Pt II   105086- 74745  K
  3297.7252    30315.203   170000     Ne II                  G
  3298.15      30311.3        330     Pt II   104930- 74619  K
  3299.91      30295.1        790     Pt I     68831- 38536  N
  3301.8596    30277.246   370000     Pt I      6567- 36844  E
  3303.04      30266.4        230
  3304.28      30255.1        820
  3306.14      30238.0         76     Pt I     68006- 37769  N
  3306.25      30237.0        100
  3307.77      30223.1        220     Pt I     68759- 38536  N
  3309.7398    30205.161   210000     Ne II                  G
  3309.9493    30203.250     1700     Pt II   105388- 75184  26
Character descriptor definitions (appear to right of intensity)
Code definitions

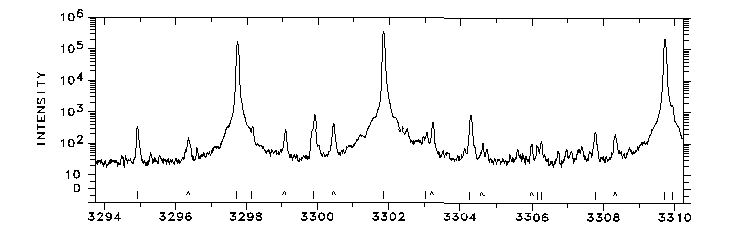

Photoelectric spectrum

3294-3310 Å

                      WAVELENGTH (ANGSTROMS) - AIR
