Lines and intensities in the range 3310-3326 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3310.499     30198.24      2800     Ne II                  C
  3311.2711    30191.193    37000     Ne II                  G
  3311.7986    30186.385     1500     Pt I     66967- 36781  N
  3312.4818    30180.159     3700     Pt I     68716- 38536  AN
  3312.4818    30180.159     3700     Pt II    96614- 66434  A
  3313.06      30174.9        330
  3314.674     30160.20      1800     Ne II                  C
  3315.0419    30156.852   220000     Pt I         0- 30156  E
  3315.45      30153.1       2500     Pt II   101517- 71364  K
  3319.7246    30114.315   680000     Ne II                  G
  3320.1973    30110.028    14000     Ne II                  G
  3322.63      30088.0        640
  3323.7350    30077.980  1900000     Ne II                  G
  3325.70      30060.2       2400     Pt I     64182- 34122  N
  3325.70      30060.2       2400     Pt II   110257- 80197  K
Character descriptor definitions (appear to right of intensity)
Code definitions

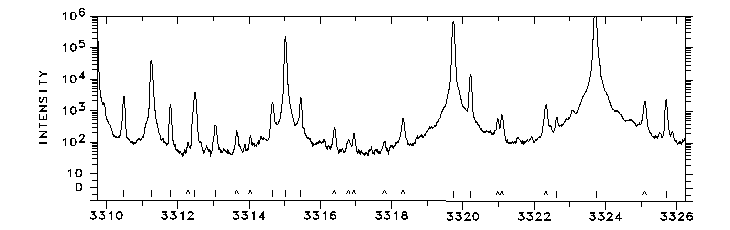

Photoelectric spectrum

3310-3326 Å

                      WAVELENGTH (ANGSTROMS) - AIR
