Spectrum of Platinum homepage

Lines and intensities in the range 3326-3342 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3327.1534    30047.079   220000     Ne II                  G
  3328.6977    30033.140     6000     Ne III                 L
  3329.1575    30028.992    80000     Ne II                  G
  3329.59      30025.1        260
  3329.69      30024.2        590     Pt II    43737- 73761  K
  3330.7335    30014.784     5500     Ne II                  G
  3333.80      29987.2        920
  3333.91      29986.2        860
  3334.8368    29977.853   820000     Ne II                  G
  3335.8163    29969.051     1100     Pt I     18566- 48535  E
  3336.0922    29966.572    11000     Ne II                  G
  3336.73      29960.8        900     Pt II   110158- 80197  K
  3337.9063    29950.287      250     Pt II    36484- 66434  20
  3338.14      29948.2       2500     Pt I     62567- 32620  N
  3339.49      29936.1        390
  3340.08      29930.8        270     Pt II    41434- 71364  K
Character descriptor definitions (appear to right of intensity)
Code definitions

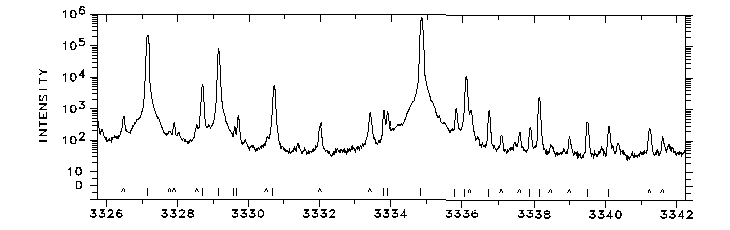

Photoelectric spectrum

3326-3342 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
