Spectrum of Platinum homepage

Lines and intensities in the range 3342-3358 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3343.30      29902.0        960     Pt II   105086- 75184  K
  3343.8961    29896.640    14000     Pt I     15501- 45398  E
  3344.3956    29892.175   230000     Ne II                  G
  3345.2555    29884.491    10000     Pt II   101199- 71314  17
  3345.4544    29882.715  1200000     Ne II                  G
  3345.8304    29879.356   210000     Ne II                  G
  3345.8678    29879.023    15000 U
  3349.08      29850.4        190
  3350.88      29834.3       3000     Pt II   101199- 71364  K
  3351.7492    29826.595      320     Ne I                   B
  3351.94      29824.9        800     Pt II   106434- 76610  K
  3353.567     29810.43      3400     Ne II                  C
  3355.0176    29797.539   550000     Ne II                  G
  3356.3078    29786.084     6800     Ne II                  G
  3357.8190    29772.680    36000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

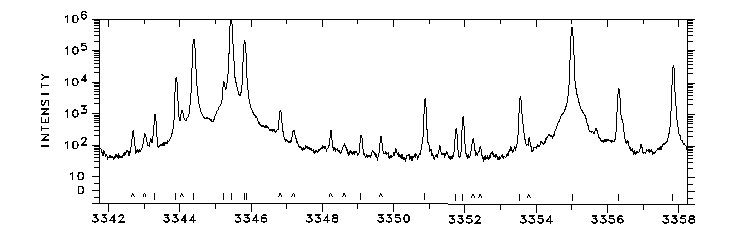

Photoelectric spectrum

3342-3358 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
