Spectrum of Platinum homepage

Lines and intensities in the range 3358-3374 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3360.2707    29750.958     6600     Ne II                  G
  3360.5977    29748.063   210000     Ne II                  G
  3360.8058    29746.222     1000
  3362.1623    29734.220    26000     Ne II                  G
  3362.7067    29729.407    14000     Ne II                  G
  3362.9378    29727.363     9400 L   Ne II                  G
  3366.9903    29691.585     8900     Pt I     13496- 43187  A
  3366.9903    29691.585     8900     Ne II                  A
  3367.2164    29689.592   200000     Ne II                  G
  3369.8073    29666.766    49000     Ne I                   G
  3369.9068    29665.890   150000     Ne I                   G
  3371.797     29649.26     39000     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

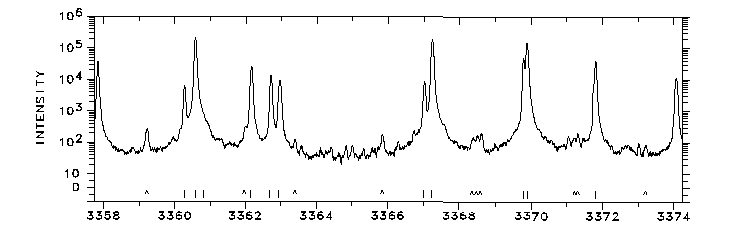

Photoelectric spectrum

3358-3374 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
