Spectrum of Platinum homepage

Lines and intensities in the range 3374-3390 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3374.0607    29629.368    12000     Ne II                  G
  3375.6490    29615.427     5300     Ne I                   B
  3376.33      29609.5        330     Pt II   112433- 82824  K
  3377.1543    29602.228    28000     Ne II                  G
  3378.2193    29592.895  1200000     Ne II                  G
  3379.3209    29583.249     5500     Ne II                  G
  3380.44      29573.5        200
  3380.99      29568.6       5200     Pt II   101517- 71948  K
  3382.89      29552.0                Ag I
  3383.8121    29543.986      670     Pt II    36484- 66028  15
  3384.82      29535.2         83     Pt II    46046- 75581  K
  3385.62      29528.2        130
  3386.202     29523.13      4000     Ne II                  C
  3388.4169    29503.837   150000     Ne II                  G
  3388.77      29500.8        920     Pt II   105962- 76461  K
  3388.9431    29499.256    12000     Ne II                  G
Character descriptor definitions (appear to right of intensity)
Code definitions

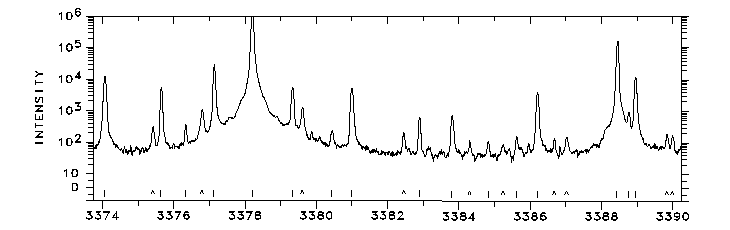

Photoelectric spectrum

3374-3390 Å

                      WAVELENGTH (ANGSTROMS) - AIR
