Spectrum of Platinum homepage

Lines and intensities in the range 3390-3406 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3390.552     29485.26      3500     Ne II                  C
  3391.38      29478.1        550     Pt II    64003- 93482  KM
  3392.606     29467.41      8700     Ne II                  C
  3392.8006    29465.717   650000     Ne II                  G
  3393.1812    29462.412     4400     Ne II                  G
  3396.83      29430.8                Rh I
  3397.866     29421.79      3800     Ne II                  C
  3404.18      29367.2        140
  3404.59      29363.7                Pd I
  3404.8208    29361.696    42000     Ne II                  G
  3405.89      29352.5        830     Pt II   105962- 76610  K
Character descriptor definitions (appear to right of intensity)
Code definitions

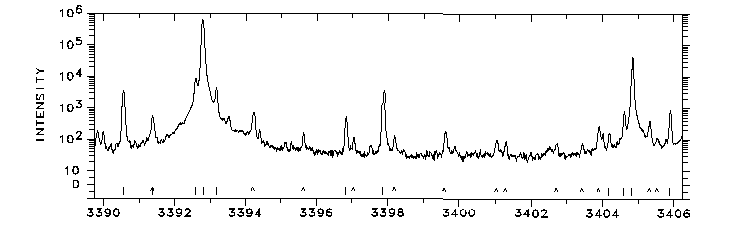

Photoelectric spectrum

3390-3406 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
