Spectrum of Platinum homepage

Lines and intensities in the range 3406-3422 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3406.52      29347.1       2500     Pt I     64668- 35321  N
  3406.9451    29343.389    60000     Ne II                  G
  3408.1308    29333.181  1300000 C   Pt I       823- 30156  E
  3411.3604    29305.412     3200     Ne II                  G
  3412.0248    29299.705      350     Pt II   110158- 80858  K
  3413.1453    29290.087    15000     Ne II                  G
  3414.4564    29278.841     1000     Pt I     68094- 38815  N
  3414.8886    29275.135     5000     Ne II                  G
  3416.9126    29257.794    33000     Ne II                  G
  3417.0828    29256.337     2800     Pt I     68072- 38815  N
  3417.6870    29251.165   220000     Ne II                  G
  3417.8034    29250.169    12000 P   Pt II   101199- 71948  19
  3417.9029    29249.318   320000     Ne I                   N
  3418.0052    29248.441    35000 P   Ne I                   G
  3419.44      29236.2        250
  3420.3407    29228.471      200     Pt I     15501- 44730  N
  3421.2218    29220.943      260     Pd I
Character descriptor definitions (appear to right of intensity)
Code definitions

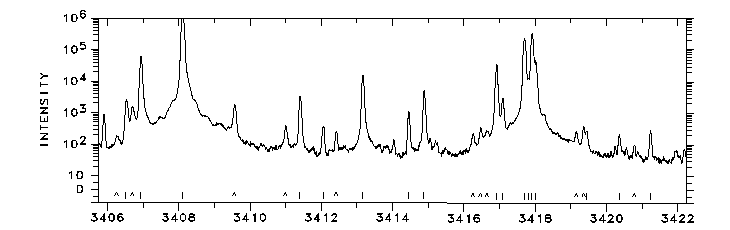

Photoelectric spectrum

3406-3422 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
