Lines and intensities in the range 3422-3438 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3423.08      29205.1         74
  3423.9126    29197.981    15000     Ne I                   B
  3424.7283    29191.027     1300     Pt I     68006- 38815  N
  3425.5299    29184.195      480     Pt I     64505- 35321  E
  3426.7263    29174.006     1600 L   Pt I     18566- 47740  E
  3427.9268    29163.790    40000     Pt I     13496- 42660  E
  3428.6850    29157.340    62000     Ne II                  G
  3431.8551    29130.408     2400     Pt I     21967- 51097  E
  3433.42      29117.1         57
  3433.79      29114.0         70     Pt II   121651- 92537  K
  3434.26      29110.0         54
  3434.8865    29104.701              Rh I
  3436.54      29090.7         79     Pt I     65387- 36296  N
  3437.19      29085.2        110
Character descriptor definitions (appear to right of intensity)
Code definitions

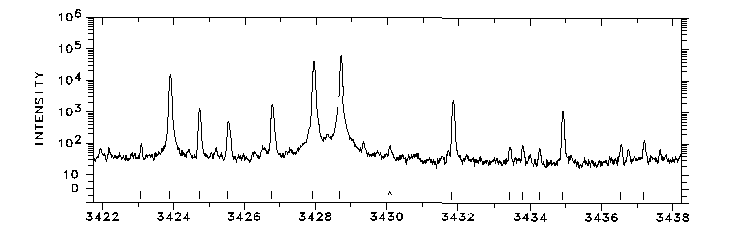

Photoelectric spectrum

3422-3438 Å

                      WAVELENGTH (ANGSTROMS) - AIR
