Lines and intensities in the range 3582-3598 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3582.146     27908.26       310     Ne II                  C
  3583.08      27901.0                Rh I
  3583.3024    27899.254      360
  3583.53      27897.5         64
  3584.932     27886.57       400     Ne II                  C
  3585.241     27884.17       540     Ne II                  C
  3587.2691    27868.405      330     Pt II   105388- 77519  37
  3587.4045    27867.353     6300     Pt I     18566- 46433  E
  3588.9941    27855.011      330
  3589.1981    27853.428      810     Pt I     18566- 46419  N
  3589.4879    27851.179      650     Ne II
  3590.450     27843.72      3300     Ne II                  C
  3591.796     27833.28      2700     Ne II                  C
  3591.9077    27832.417      300     Pt I     64128- 36296  E
  3593.5252    27819.889   410000     Ne I                   G
  3593.6385    27819.012   210000     Ne I                   G
  3594.1582    27814.990    83000     Ne II                  G
  3596.5531    27796.469      350     Pt I     65387- 37590  N
  3597.15      27791.9                Rh I
  3597.2858    27790.807     2400     Pt I     65132- 37342  N
  3597.5403    27788.841      510     Pt I     68759- 40970  N
Character descriptor definitions (appear to right of intensity)
Code definitions

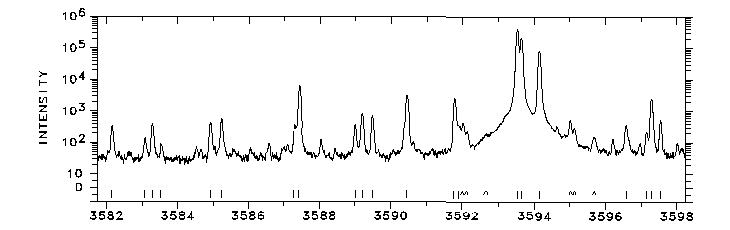

Photoelectric spectrum

3582-3598 Å

                      WAVELENGTH (ANGSTROMS) - AIR
