Spectrum of Platinum homepage

Lines and intensities in the range 3598-3614 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3598.02      27785.1         71
  3600.1682    27768.557   120000     Ne I                   G
  3601.056     27761.71      1300     Ne II                  C
  3601.4005    27759.057      250     Pt I     68275- 40516  N
  3601.9340    27754.945      330 L
  3602.3841    27751.477      420 L   Pt II   105794- 78043  K
  3602.6582    27749.366     8100
  3602.771     27748.50       630     Ne II                  C
  3603.236     27744.92       680     Ne II                  C
  3604.1641    27737.772      330     Pt I     60357- 32620  E
  3604.76      27733.2        140     Pt I     68703- 40970  N
  3605.31      27729.0                Cr I
  3606.12      27722.7        150
  3606.7395    27717.966      840     Pt I     65308- 37590  N
  3607.504     27712.09      1400     Ne II                  C
  3607.8646    27709.323      140     Pt II    37877- 65587  33
  3608.605     27703.64       290     Ne II                  C
  3608.8592    27701.686              Fe I                   R
  3609.1783    27699.236    14000     Ne I                   G
  3609.5443    27696.428              Pd I
  3610.9063    27685.982     2300     Pt I     15501- 43187  E
  3611.599     27680.67       650     Ne II                  C
  3612.326     27675.10     11000     Ne II                  C
  3612.606     27672.96       240     Ne II                  C
  3613.84      27663.5         65
Character descriptor definitions (appear to right of intensity)
Code definitions

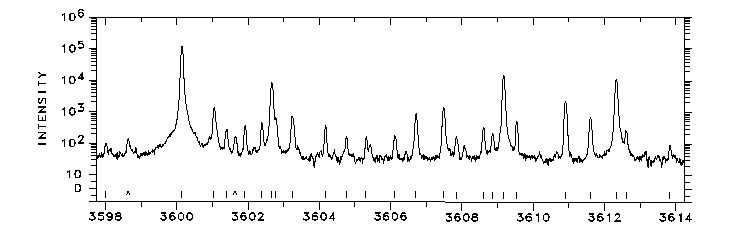

Photoelectric spectrum

3598-3614 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
