Spectrum of Platinum homepage

Lines and intensities in the range 3614-3630 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  3614.33      27659.8        180
  3615.17      27653.3        110     Pt I     68169- 40516  N
  3615.28      27652.5        350     Pt I     10116- 37769  N
  3615.40      27651.6         95
  3615.99      27647.1        150
  3616.348     27644.32       270     Ne II                  C
  3617.91      27632.4         78
  3618.3806    27628.794      300     Pt II   121651- 94022  K
  3618.7603    27625.895      500     Ne II                  A
  3618.7603    27625.895              Fe I                   A
  3619.2212    27622.377      780     Pt II   110158- 82535  K
  3619.8007    27617.955     1500     Pt I     65387- 37769  N
  3620.5414    27612.305     3500
  3621.6546    27603.818     2800     Pt I     18566- 46170  E
  3622.4709    27597.598     2200     Pt I     64379- 36781  N
  3625.1223    27577.413      870 L
  3625.54      27574.2        140
  3626.5363    27566.661     5000     Ne II                  G
  3628.0329    27555.290    15000     Ne II                  G
  3628.1107    27554.699    91000     Pt I      6567- 34122  E
  3628.8660    27548.965    20000     Pt I     64330- 36781  N
  3628.9097    27548.632      400 U
  3629.1744    27546.623      310 W   Pt II   105066- 77519  38
Character descriptor definitions (appear to right of intensity)
Code definitions

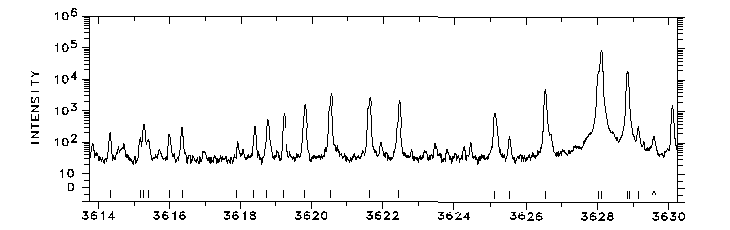

Photoelectric spectrum

3614-3630 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
